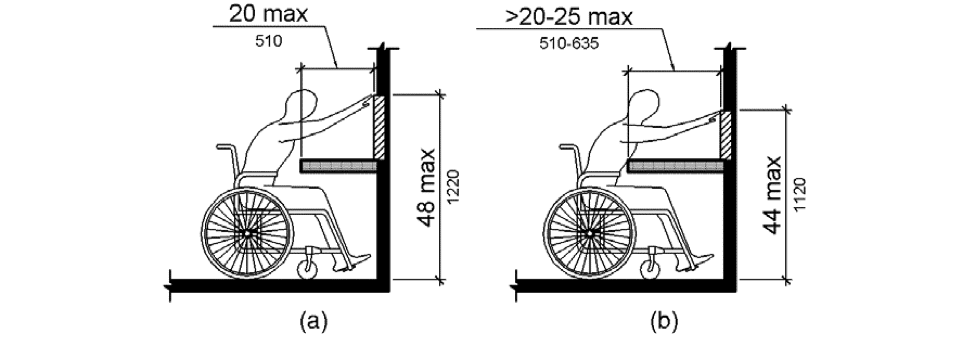

If the dispenser is mounted in a corner and you have to reach forward from a wheelchair, the maximum high reach is 48 inches. But if you’re approaching from the side — like rolling up parallel to the wall — the side reach limit is just 46 inches for the highest operable part.
I know, I know. It sounds like a real estate zoning issue for towels. But this matters because bathrooms are cramped. If the dispenser is placed next to a hand dryer or a trash slot, the approach angle matters. ADA planners must have a secret love for measuring tapes, I swear.
The Clear Floor Space: Don’t Block the Roll
You also need a clear floor space in front of the dispenser. That means no trash cans, no cleaning buckets, and definitely no mop handles leaning on the wall. The space must be at least 30 inches by 48 inches. This ensures a wheelchair can pull up and face the dispenser directly.
Paper Towel Dispensers Mounted Outside The Allowable Reach Ranges - NATSO
And the kicker? The dispenser can’t protrude too far into the path of travel. If it sticks out more than 4 inches from the wall, you have to think about cane detection for visually impaired users. So that giant, bulky industrial dispenser? It might be a safety hazard. Funny how something so simple gets so complicated, right?
